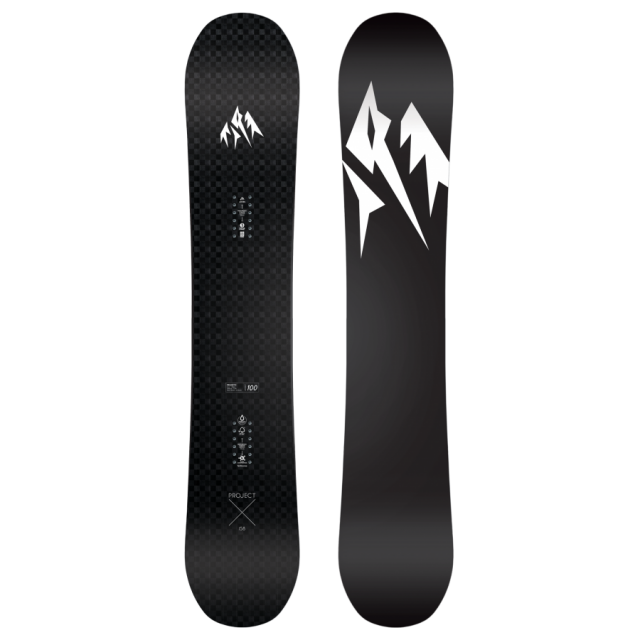

Carbon Solution Splitboard

The backcountry line bomber
Ideal for technical backcountry lines
Directional Freeride
Shape
- Traction Tech
- Blunt Nose
- Progressive Sidecut
- Quick Tension Tail Clip
- Directional Shape
- Bolt-less Bridge
Flex
- Stiffness: 10/10 - Powerful
- Directional flex pattern
IMG/png/carbon-solution.png
IMG/png/jones1920-carbonsolution-topsheet.png
IMG/png/jones1920-carbonsolution-nose.png

Only for the expert

The Carbon Solution is built for powerful riders who like to throttle turns at top speed and push the limits of what’s possible in the backcountry. It is the most stable, damp and responsive splitboard in the Jones line. The Carbon Solution features cutting edge construction and materials including Textreme Carbon, a new featherweight Ultra Core and a new Ultra Base that’s the fastest base we’ve ever tested. Updated Inner/Outer Traction Tech 2.0 edges improve edging power going up or down and the Boltless Bridge plus Karakoram Ultra Clips deliver rock solid torsional board lock.

The Carbon Solution also features new Karakoram Tip-Lock clips that lock your nose+tail together in ride mode and Rounded Recycled ABS Sidewalls for improved topsheet durability.




Personality




Traction Tech

Like a serrated knife slicing into the snow, Traction Tech improves your edge grip by adding multiple contact points along the running length of your board.

Traction Tech is a critical feature for rockered boards. Rocker improves glide in mixed conditions, but the decreased edge contact makes it harder to really lock
into your turns and hold a solid edge. Traction Tech is crucial to offset the edge drift of rocker. — Jeremy Jones

Blunt Nose
How a board glides in powder, crust, corn or any snow more than an inch deep, is dictated by it’s front contact point and just past it. Next time you are in soft snow watch how much snow comes over the corner of the nose near the contact point. The billowing snow coming out from behind the tip means you are plowing through it which is obviously slowing you down. By adding a blunt nose you get the float benefits of a much longer nose without the ‘snow plow’ rounded tip and it’s extra swing weight. — Jeremy Jones
Progressive Sidecut
At the far ends of the sidecut, the radius is incrementally increased as the edge reaches the contact point. Gradually increasing the sidecut radius towards the contact point delivers smoother turn initiation and exit as the edge tracks in and out of the snow with a less abrupt transition.
Quick Tension Tail Clip
Built-in climbing skin tension system using pre-cut notch that eliminates the need for a traditional skin tail clip.
Wend Natural Wax
Jones boards are ready to shred straight out of the shop and are factory waxed with WEND natural wax.
Ultra Base
New Jones exclusive base material that sets new performance standards. Lab results and snow testing show 25% better wax absorption, better glide in warm/wet snow and better durability for grinding. We’ve also doubled the amount of wax and mixed multiple wax types for a faster factory wax in a wider range of conditions.
TeXtreme® Carbon
Specially designed carbon fiber (12k non-crimp fabric) that is podium proven in the America’s Cup and Tour De France. TeXtreme achieves a weight savings of about 20-30% compared to conventional carbon fiber.
Carbon Construction
The Carbon Series are the most high performance boards we produce. They are designed to meet the demands of ground breaking riders who push the limits of what’s possible on a snowboard. If you ride confidently and chase serious new challenges on your snowboard, these are the boards you’re looking for.
Factory Tuned
All Jones Snowboards are factory de-tuned at the tip and tail so you can go right from the shop to the mountain.
Stainless Steel Reinforcement
Stainless steel plates are embedded into the nose and tail for improved board tip durability.
The Bridge Tech
The Bolt-less Bridge eliminates split clip attachment hardware from the base of the board by re-profiling the wood core at the clips. The wood core under the clips is thicker providing better torsional stifness and a more powerful connection at the split clips.
Karakoram Tip-Lock Tip Clips
Every splitboarder knows the feeling - you drop into a firm line and your tip clip pops open! Never again. Using Active Joining Technology, the Karakoram Tip-Lock Tip Clips quickly lock and clamp the tips of your splitboard with the flick of the lever.
Recycled Rounded ABS
New rounded sidewall finish that improves board durability by protecting top sheet from chipping. Available on all splitboards and Surf Series models.
Thin Recycled Edges
Advancements in ski edge durability allow us to use thinner edges on splitboard inside edges (and ProjectX outside edges) to save weight. Outside edges are 2mm, inside edges are 1.5mm.
Fusion Tech
Jones exclusive production process allows traditional topsheet layer to be replaced with ultra durable epoxy layer saving weight and material.
Super Sap Bio Resin
All Jones boards are now built with bio-based, renewable epoxy instead of petroleum based epoxy. The raw materials used to make Super Sap Bio-Resin are co-products or waste products of other plant-based industrial processes. Producing Super Sap requires 33% less greenhouse gas emissions than conventional epoxy.
Eco Plastic Topsheet (matt)
Bio-plastic topsheet made from Castor beans. This eco-material is ultralight, chip/scratch resistant and water/snow repellent (snow sticks less to topsheet)
Ultra Split Core
The new Ultra Split Core is our lightest split wood core yet. Core is made from mostly paulownia with specially positioned poplar stringers for better durability and turn power.
Gear 101
Not all board shapes are designed to be ridden the same size. Directional Freeride boards are the longest board you will ride.
Choose the ideal size Directional Freeride board using your weight and boot size (see the size chart below).


If you wear US Men’s 11.5 or bigger, look for our Big Horn series boards with minimum waist width 26.3 cm.
Not sure your ideal snowboard size? Check out our sizing guidelines for each model.



Know your board
The dimensions of a snowboard define how that board performs on snow. The dimension specs of all our models are fine tuned for specific styles of riding.
Understand how waist width, flex and sidecut and stance dimensions effect board performance to find the best board for you.

For reference: drawing of the Flagship 161



Size Chart
Product Size Weight Range (lbs/kg) Bindings Recommended Size Weight / Production tolerance +/- 15% Skins Group Effective Edge Length Nose Length (cm) Tail Length (cm) Nose Width (cm) Waist Width (cm) Tail Width (cm) Taper Sidecut (m) Reference Stance (cm) Centered Stance (cm) Setback (cm)
158 130-180 lbs / 59-82 kg S/M 3,0 kg / 6,6 lbs B 119.6 29.2 18.7 29.04 24.9 28.87 0 8.5 - 58 3
161 150-200 lbs / 67-91 kg S/M 3,3 kg / 7,2 lbs B 122 29.5 19 29.23 25.2 29.08 0 9.1 - 58 3
162w 160-210 lbs / 73-95 kg M/L 3,4 kg / 7,4 lbs F 123 29.5 19 30.31 26.3 30.16 0 9.3 - 58 3
164 160-210 lbs / 73-95 kg M/L 3,4 kg / 7,4 lbs D 124.6 29.7 19.2 29.52 25.4 29.37 0 9.3 - 58 3
165w 170-220+ lbs / 77-100+ kg M/L 3,6 kg / 7,9 lbs G 125.4 29.8 19.3 30.73 26.6 30.58 0 9.4 - 58 3

Bolt-less Bridge

The Bolt-less Bridge eliminates split clip attachment hardware from the base of the board by re-profiling the wood core at the clips. The wood core under the clips is thicker providing better torsional stiffness and a more powerful connection at the split clips.

Gallery



Carbon Series
The Carbon Series are the most high performance boards we produce. They are designed to meet the demands of ground breaking riders who push the limits of what’s possible on a snowboard. If you ride confidently and chase serious new challenges on your snowboard, these are the boards you’re looking for.

High Performance, Sustainably Made Gear
We design gear that balances performance, durability and sustainability. We strive to make equipment you can trust with the most eco-conscious materials possible. New for 2020, all our snowboards and splitboards are molded with Super Sap Bio-Resin.
Proud member of 1% For The Planet, we donate 1% of sales to fight climate change by supporting our non-profit partners Protect Our Winters and Community Carbon Trees.
